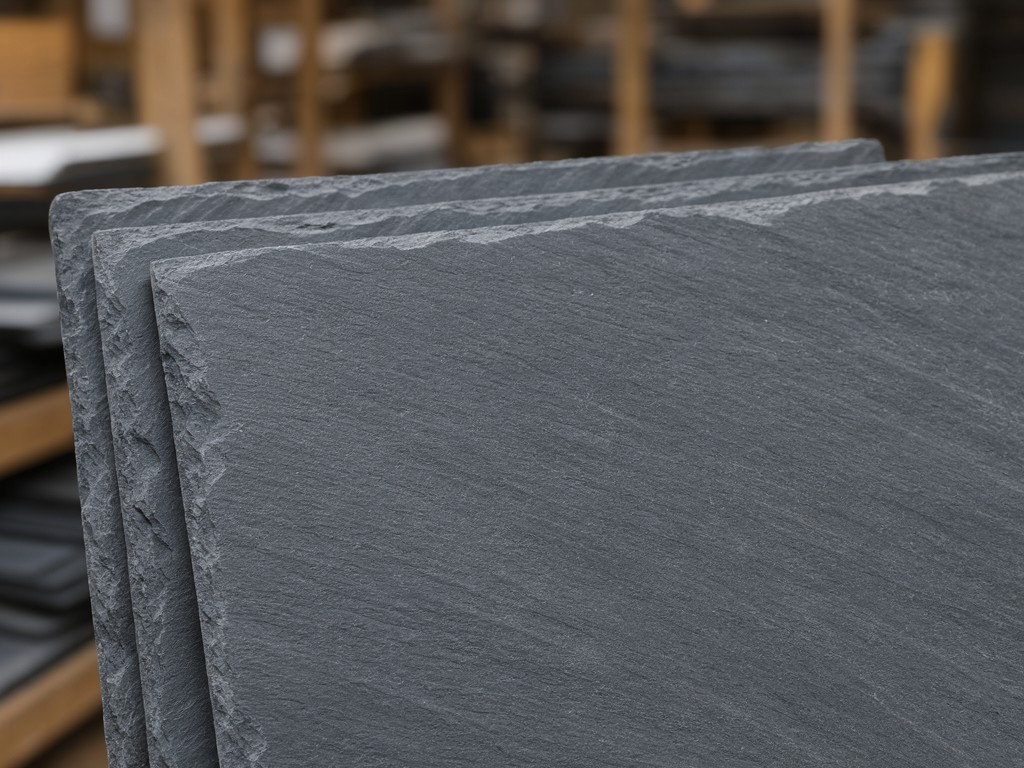

Specifying Charcoal Black Slate Ledger Panels Supplier for Wholesale and OEM Orders
Material choice starts with the conditions the product will meet in architectural environments. Natural slate offers high thermal mass but is prone to delamination if the cleavage planes are not respected during the cutting process. For wholesale distributors, the trade-off lies between the raw aesthetic of genuine stone and the dimensional consistency of engineered stone-composite veneers.
Technical Note: Ledger panels require a minimum thickness of 8mm to 12mm to maintain structural integrity during transport. Sub-standard profiles increase the risk of fracture during the mechanical fastening phase.
Design Constraints Behind the Specification
Moisture absorption is the primary failure mode for ledger panels used in exterior facades. If the absorption rate exceeds 0.5%, freeze-thaw cycles will cause spalling of the slate face. Manufacturers must source high-density metamorphic metamorphic slate to ensure the charcoal pigment remains stable over multi-year UV exposure cycles.
Surface texture dictates the maintenance requirements for the end-user. A split-face finish provides more surface area for dust accumulation, whereas a honed charcoal finish allows for easier chemical cleaning but reveals more variations in the stone's natural grain.
How It Performs in Use
Mechanical shear strength is determined by the adhesive-to-substrate ratio. Heavy-format ledger panels increase the load on the substrate, potentially leading to sagging if the frame is not reinforced. We provide panels with precision-cut edges to prevent vertical slippage in large-scale wall installations.
Abrasion resistance is critical for high-traffic commercial interiors. Charcoal slate naturally maintains a high Mohs scale rating, but the edges are vulnerable to chipping if subjected to impact from heavy cleaning equipment.
Size, Weight and Specification Range
| Parameter | Standard Range | Customization Options |
|---|---|---|
| Panel Thickness | 8mm - 25mm | Up to 40mm for heavy-duty |
| Panel Width | 100mm - 600mm | Variable-cut strips |
| Length Options | 200mm - 1200mm | Long-format slabs |
| Weight Density | ~25-30 kg/m² | Lightweight mesh backing |
Option Comparison by Usage Level
Cost and durability pull in opposite directions once the environment becomes aggressive. Use the following logic to determine the correct material grade for your wholesale inventory:
- Interior Residential (Low Impact): Select the honed-finish charcoal slate to minimize cost per unit while maintaining aesthetic sleekness.
- Commercial Retail (Medium Impact): Utilize split-face panels for enhanced abrasion resistance to hide scratches and wear.
- Exterior Facade (High UV/Weather): Require 15mm+ thickness with a pre-applied sealant to prevent moisture ingress and mineral efflorescence.
What Can Be Customised and What Cannot
The core composition of the charcoal slate is fixed to ensure the geological properties remain consistent across batches. However, the mechanical configuration of the ledger—ranging from random mosaic to interlocking linear patterns—is fully adjustable to meet installation requirements.
Backing materials can be switched between stainless steel mesh for marine environments or reinforced polymer for weight-reduction projects in--sensitive vertical wall applications.
Usage Scenarios and Buyer Segments
Large Importers
Focus on pallet density and bulk shipping-rate optimization. We provide palletized crates to minimize breakage during ocean freight transit.
Private-Label Brands
Require custom CNC-cut edge profiles and specific charcoal-tone matching to differentiate in the high-end architectural retail market.
Setup, Use and Replacement Parts
Ledger panels are typically installed using thin-set mortar combined with mechanical anchors. For replacement parts, we maintain batch-tracking records to ensure that new panels match the tonal charcoal variance of the original installation, though natural stone variations of 5-8% are expected.
Ordering, Tooling and Lead-Time Questions
| Requirement | Standard Terms | Lead Impact |
|---|---|---|
| Minimum MOQ | 50 Square Meters | Lower for stock-items |
| Custom Tooling | 14-21 Days | Depends on CNC complexity |
| Bulk Lead Time | 30-45 Days | Subject to quarry yield |
Ready to finalize your wholesale specifications?
Review our technical capabilities and request a quote for charcoal slate ledger panels.
Review Tooling and Pricing PricingFrequently Asked Questions
Is the charcoal color consistent across batches?
The natural slate pigment is inherent to the metamorphic process, not a coating, ensuring the color does not fade over time.
Can these panels be used in pools?
Yes, the charcoal split-face slate is resistant to chlorine, provided the adhesive used is rated for submerged environments.
