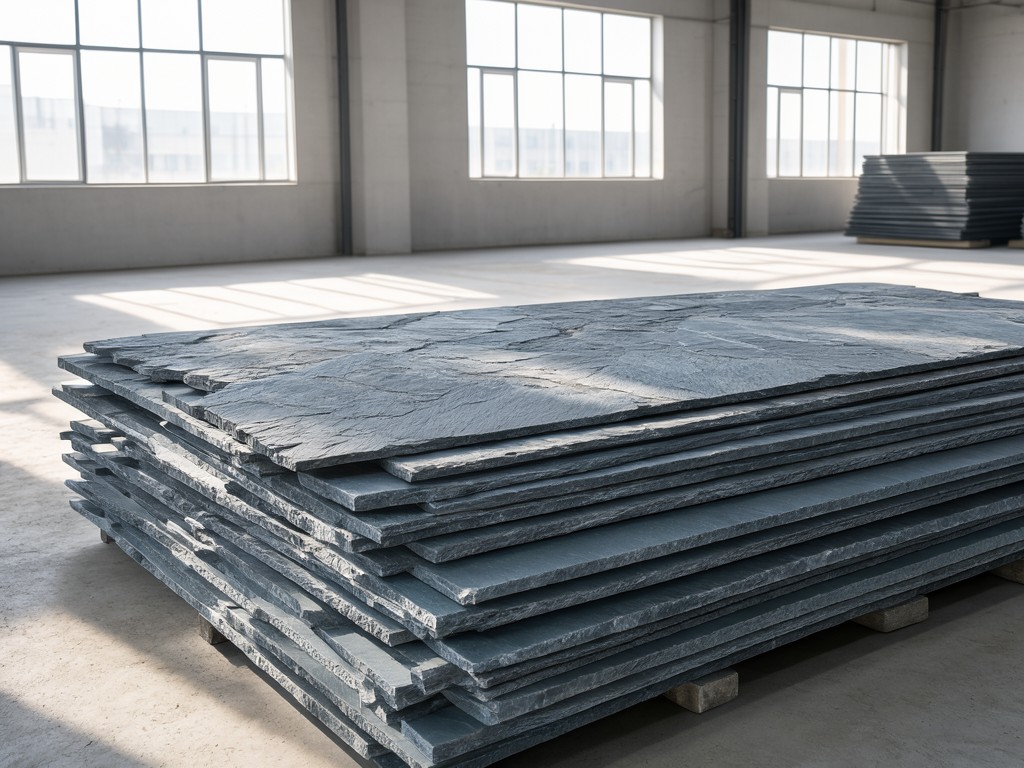

Bulk Split Face Slate Ledger Panels Factory - Specification Guide
Sourcing bulk split face slate ledger panels requires an understanding of stone cleavage integrity and dimensional tolerance across large batches. In large-scale architectural projects, the consistency of the split-face texture determines the labor hours for installation and the final aesthetic uniformity of the facade. Our manufacturing process focuses on maintaining natural bedding planes to ensure the split-face remains structurally sound, preventing the common delamination issues seen in lower-grade quarrying.
Technical Note: Split-face variance is controlled through mechanical splitting rather than sawing, which preserves the natural porosity and reduces the risk of micro-cracking during bulk transport.
Scope of Supply and Physical Form
The physical properties of the ledger panels are categorized by their thickness ratios and the roughness of the split face. We provide various profiles to accommodate different cladding loads, ranging from lightweight decorative veneers to heavy structural stone. Each panel is inspected for dimensional accuracy within a +/- 2mm tolerance to ensure flush alignment during dry-stack installation.
- Standard thickness: 15mm to 40mm depending on the structural requirement.
- Face texture: Natural-split, cleft-split, or chiseled options.
- Edge treatment: Raw-edge, square-cut, or interlocking for seamless joints.
- Material density: High-density metamorphic slate de-selected for water-absorption resistance.
Design Constraints Behind the Specification
The primary failure mode in stone cladding often stems from improper thermal expansion handling or moisture ingress behind the split face. If the split is too shallow, the surface is prone to spalling under freeze-thaw cycles. Our factory utilizes calibrated splitting equipment to ensure the fracture runs perpendicular to the grain, maximizing the service life in high-exposure commercial facades.
| Parameter | Standard Range | Testing Method |
|---|---|---|
| Water Absorption | <0.5% | ASTM C137 |
| Compressive Strength | gt;60 MPa | Static Load Test |
| Dimensional Variance | +/- 2mm | Caliper Inspection |
How It Is Built
Production begins with the selection of raw slate blocks free of internal fissures or large mineral veins. These blocks are primaryed to the required thickness before reaching the splitting stage. The split-face is achieved through high-pressure hydraulic splitting, which creates the characteristic irregular surface demanded by modern architectural designs without compromising the integrity of the ledger panel.
Standard Bulk Production
Designed for wholesale distributors requiring standard SKU sizes and palletized units. This path minimizes tooling costs by utilizing pre-set splitting patterns suitable for large-scale residential developments.
Custom Project Specs
For high-end architectural projects, we offer custom dimensions and specific edge profiles. This involves precision CNC cutting and manual structural reinforcement for high-load applications.
Comparing Two Configurations
The choice between interlocking and flat-edge panels affects both the speed of installation and the complexity of the substrate system.
- Interlocking System: Provides mechanical bond benefits that reduce adhesive reliance but require tighter tolerances on panel width to prevent gaps.
- Flat-Edge System: Offers maximum aesthetic flexibility for pattern laying but requires a more skilled mortar-bed application to prevent slipping.
Care, Storage and Service Life
Long-term durability of ledger panels depends on proper sealing after installation. In storage, pallets must be kept on level surfaces to prevent stone bowing, which can lead to fractures in the split-face layers. Service life in exterior environments typically exceeds 50 years, provided the stone is treated against atmospheric pollutants that can cause staining.
Frequently Asked Questions
What is the minimum order quantity for bulk export shipping to prevent breakage?
We typically ship in reinforced timber crates designed for 1-ton loads to ensure the breakage rate is minimized during international transit.
Can the split-face surface be treated with breathable sealants?
Yes, the porous nature of the slate accepts a penetrating silane sealer which prevents water penetration without altering the natural matte finish of the split.
